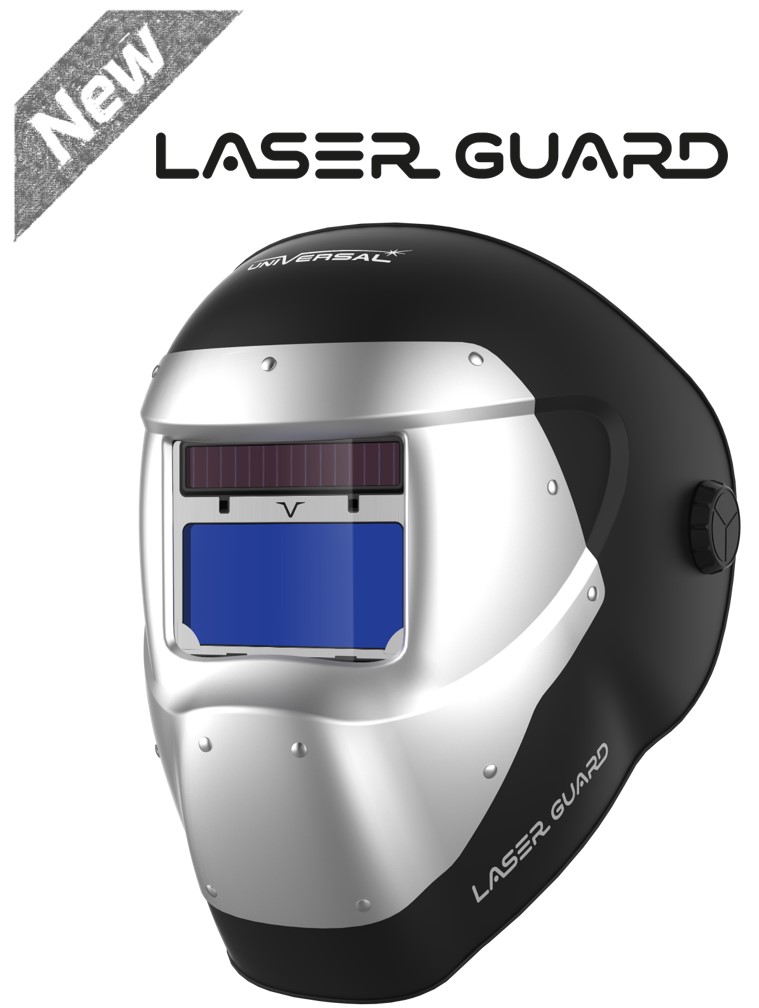

LASER GUARD 2.0 (STANDARD)

https://www.universalppe.co.uk/web/image/product.template/12808/image_1920?unique=8554e23
  • Logo
  • Colour
  • Size

This combinations does not exist.





`

All-around safety against laser exposure.

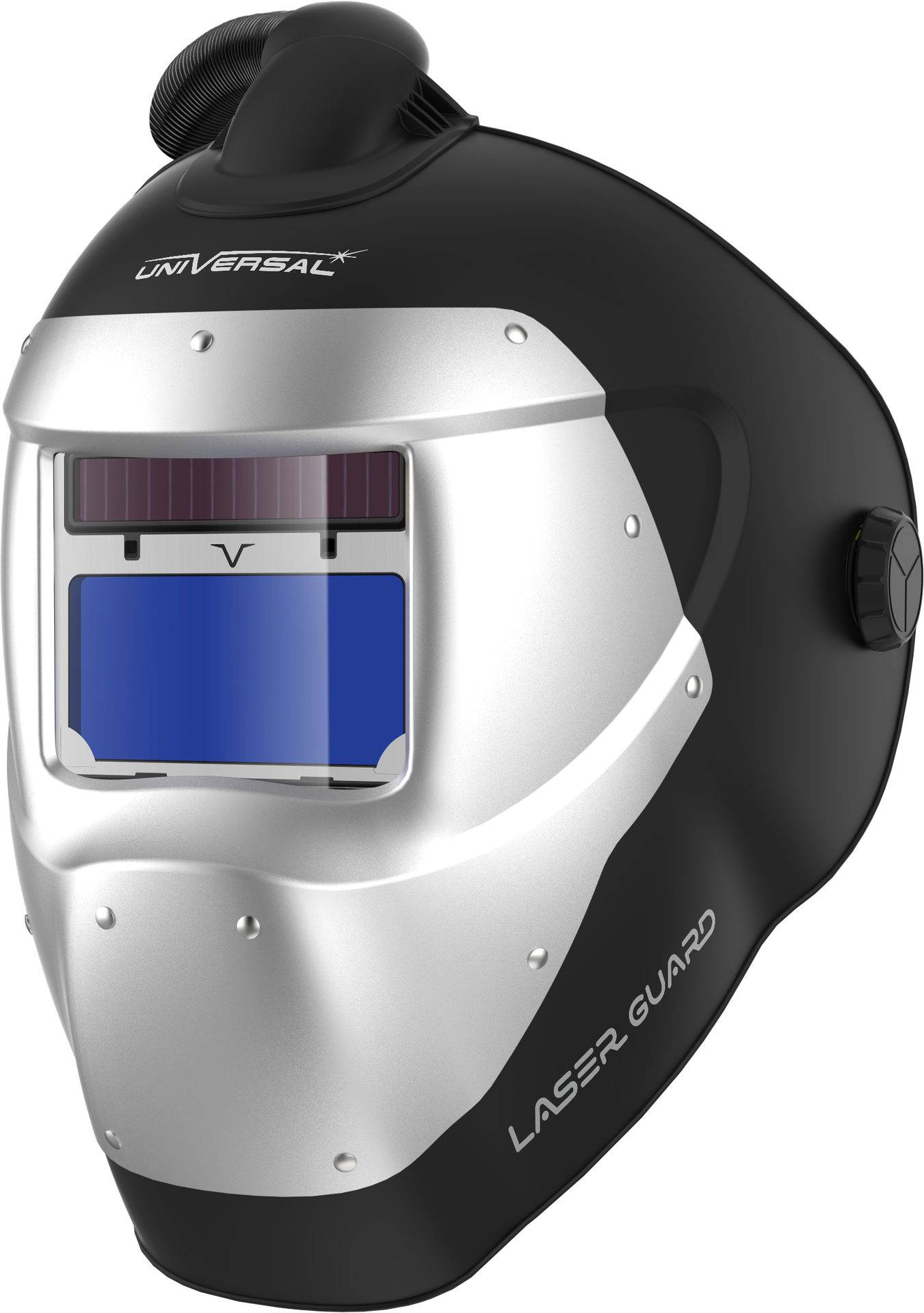

The Universal Laser Guard welding helmet is specifically designed for laser welding/cutting application to protect users.

The variable shade laser lens provides full protection against direct laser exposure, as well as reflection, scattering, diffraction, and divergence from the laser beam. Meanwhile, it offers protection against UV/IR/ blue light.

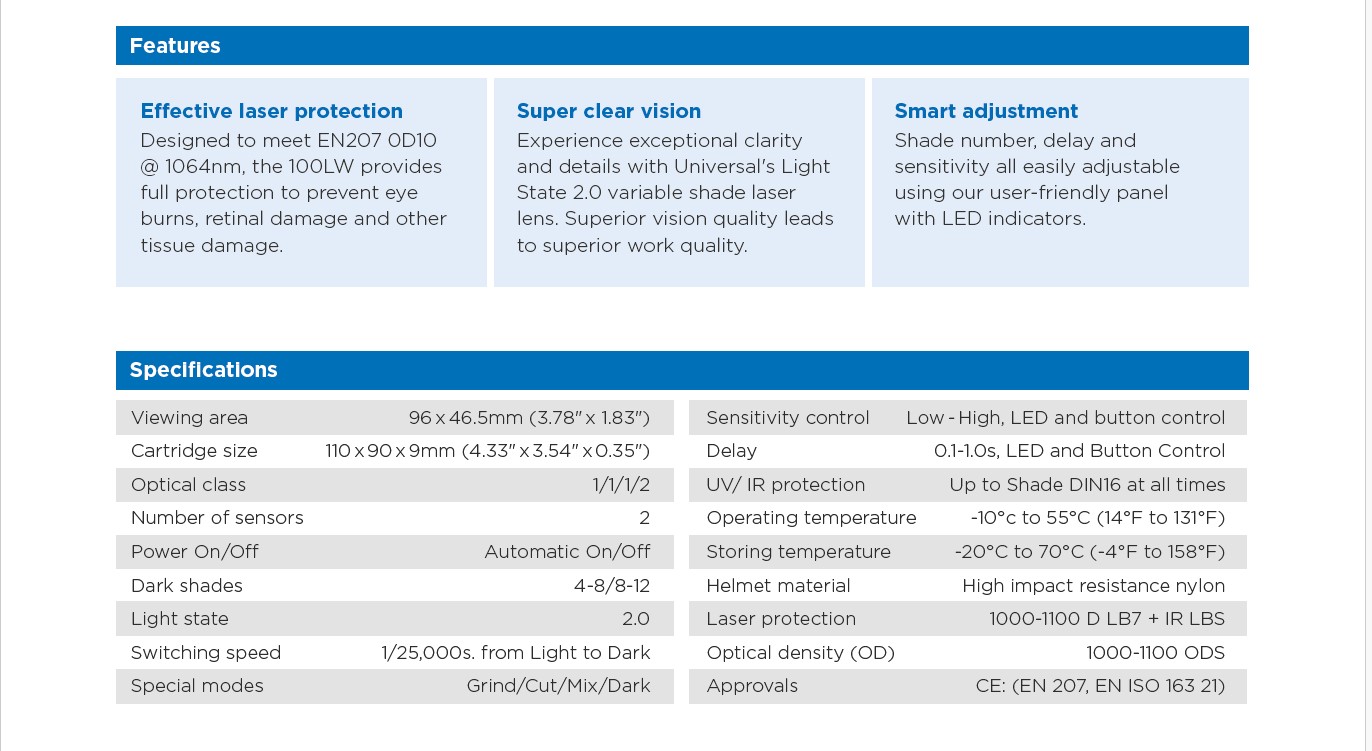

Viewing area
96x 46.5mm (3.78" x 1.83")

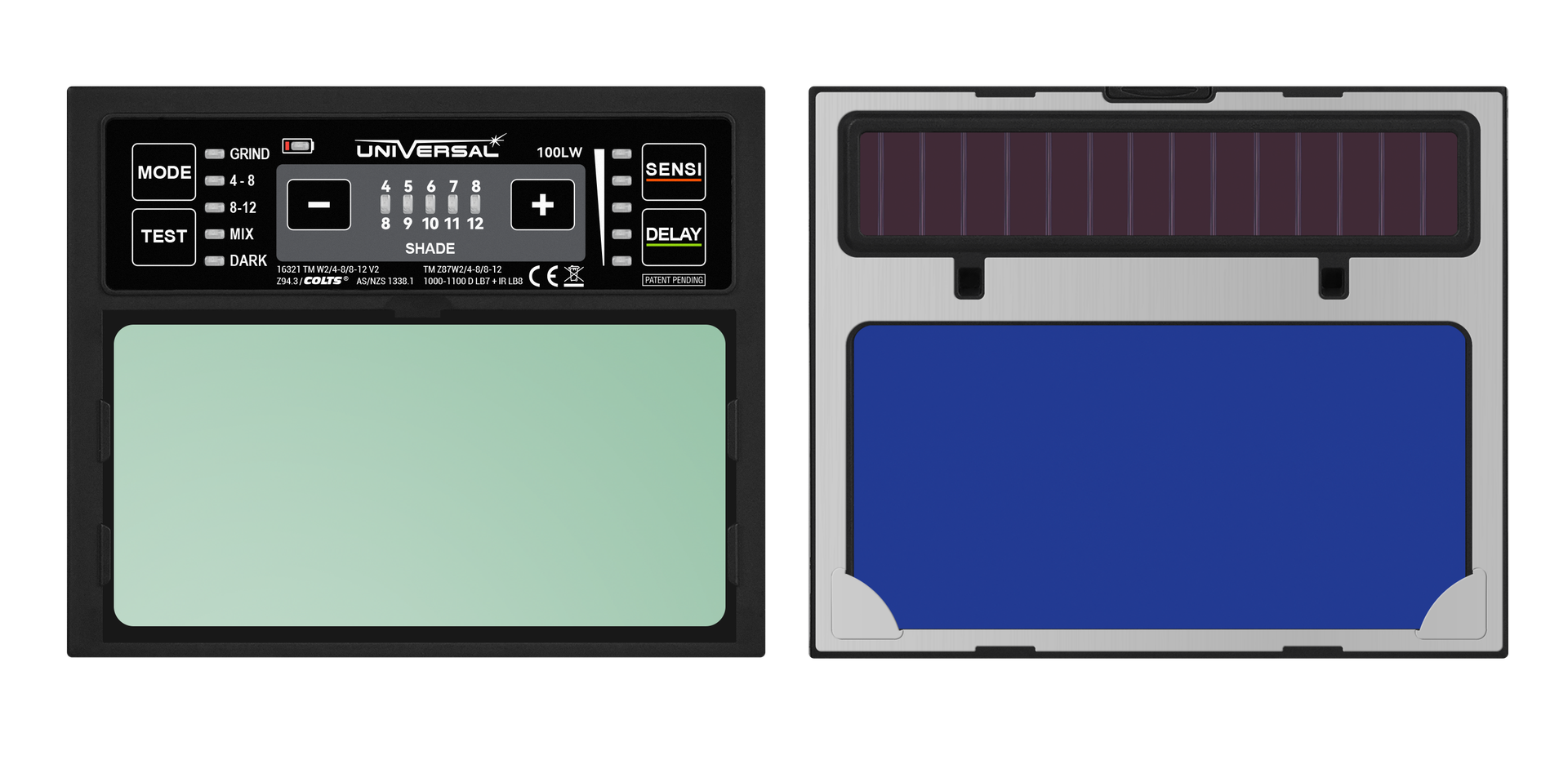

Cartridge size
110 x90x 9mm (4.33" x 3.54" x0.35")
Optical class
1/1/1/2
Number of sensors
2
Power On/Off
Automatic On/Off
Dark shades
4-8/8-12
Light state
2.0
Switching speed
1/25,000s. from Light to Dark
Special modes
Grind/Cut/Mix/Dark
Sensitivity control
Low- High, LED and button control
Delay
0.1-1.0s, LED and Button Control
UV/ IR protection
Up to Shade DIN16 at all times
Operating temperature
-10°c to 55°C (14°F to 131°F)
Storing temperature
-20°C to 70°C (-4°F to 158°F)
Helmet material
High impact resistance nylon
Laser protection
1000-1100 D LB7 + IR LBS
Optical density (OD)
1000-1100 ODS
Approvals
CE: (EN 207, EN ISO 163 21)
