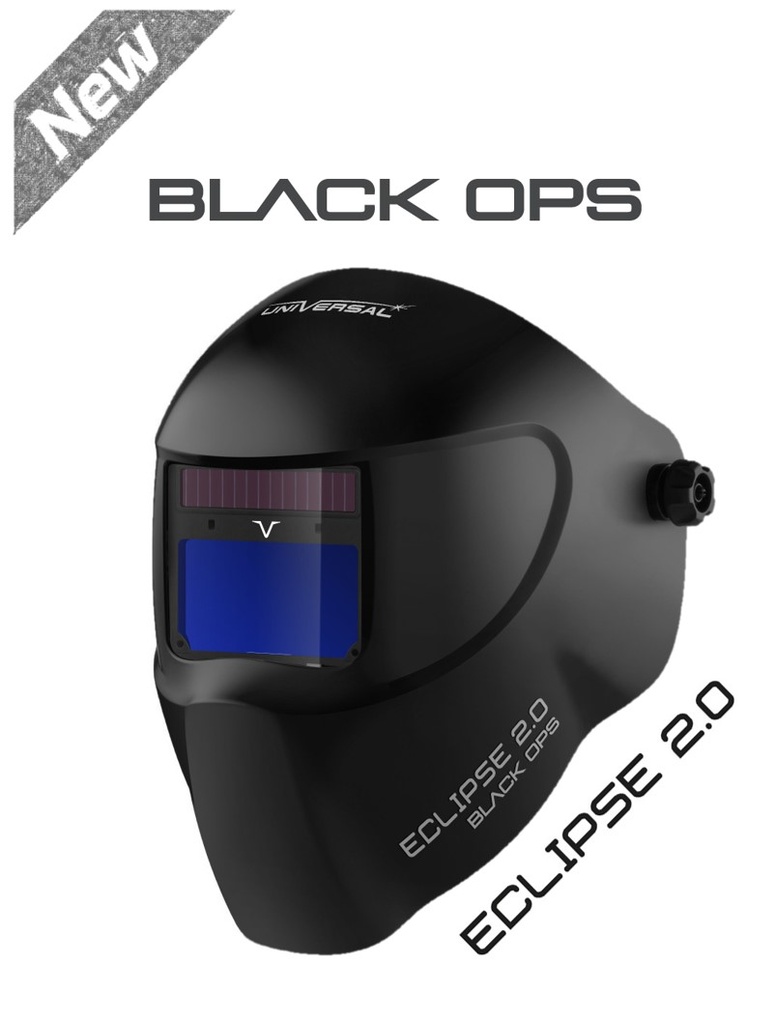

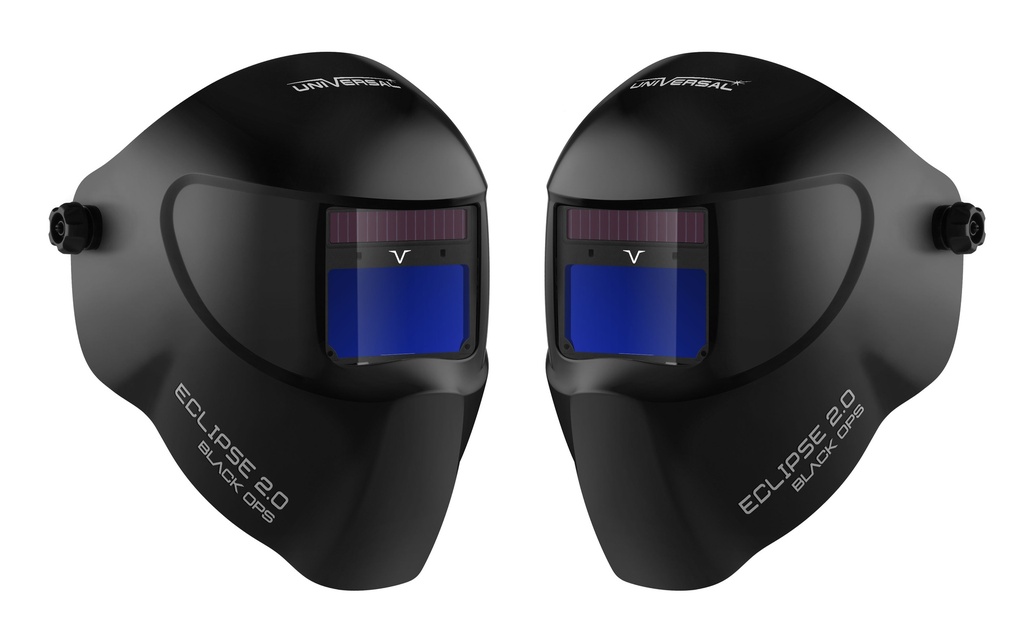

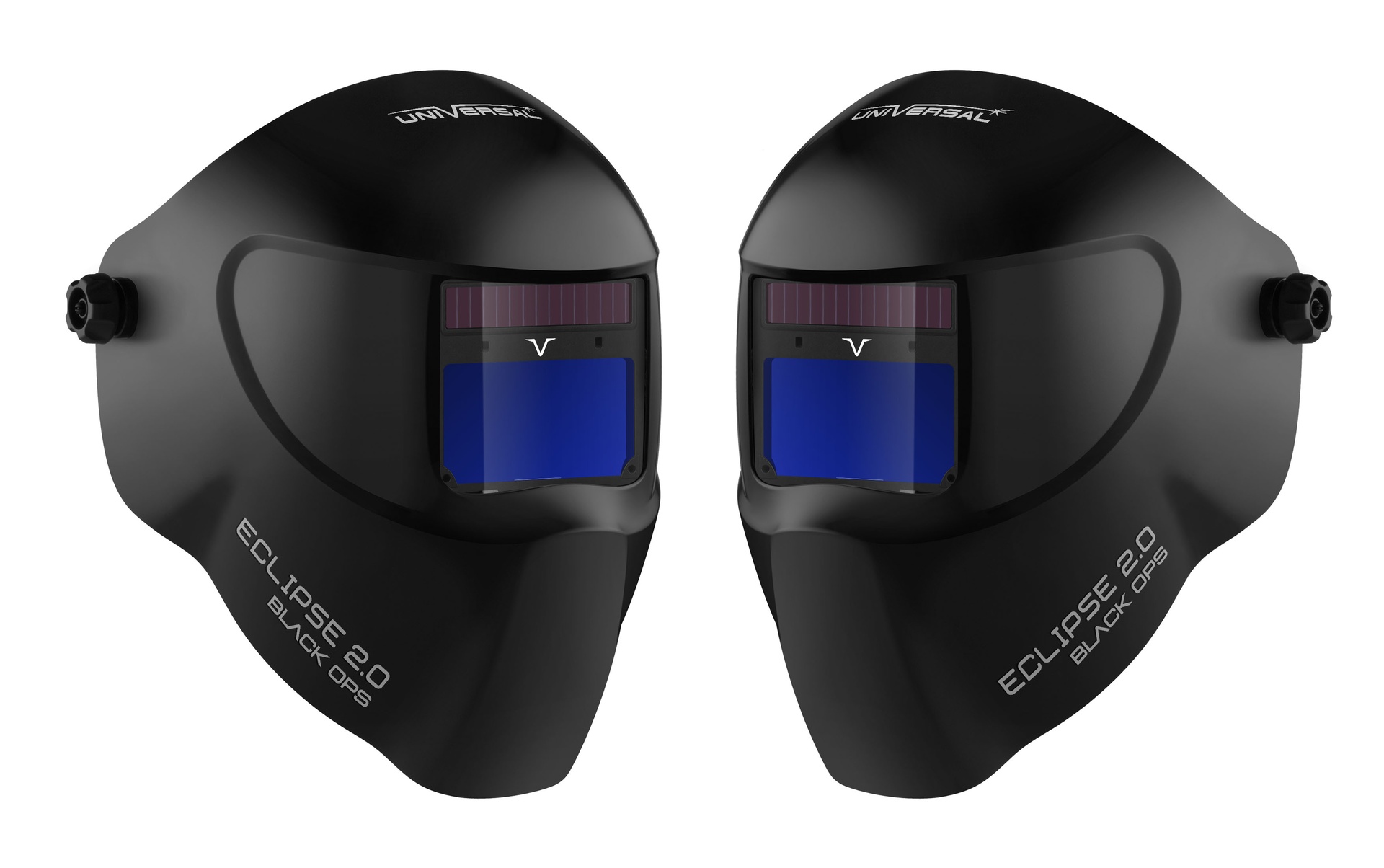

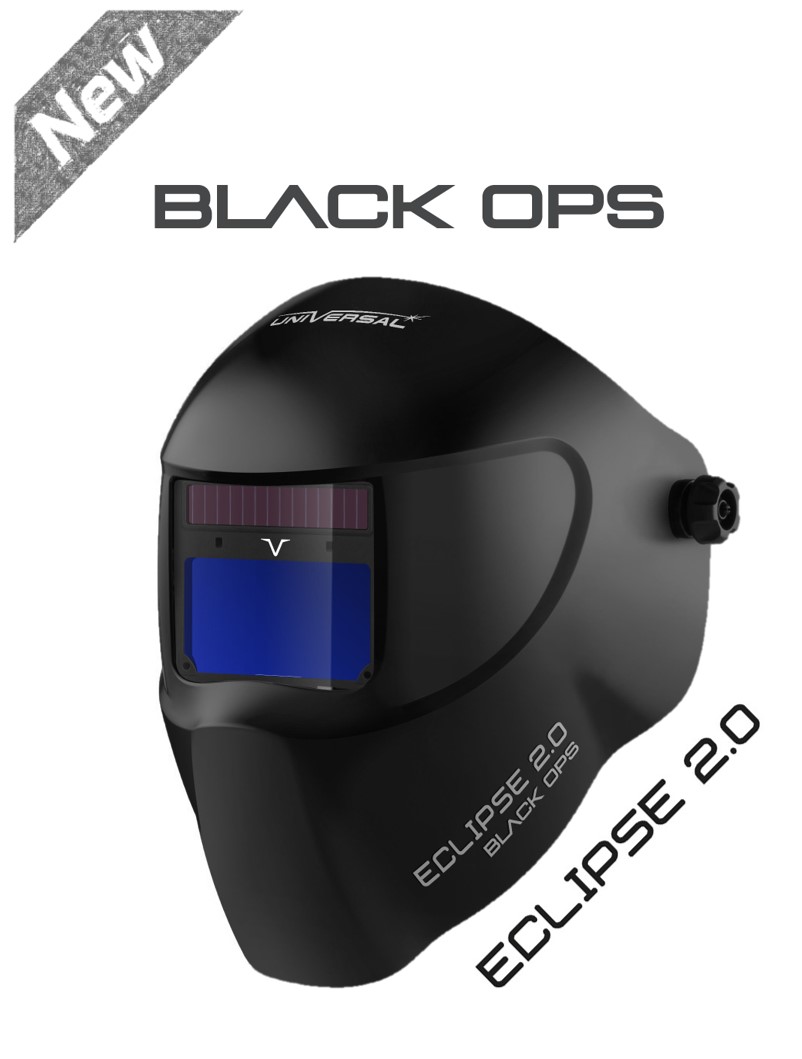

Enjoy the ultimate in clarity and crystal-clear vision with the Eclipse 2.0.
Super Bright Vision:
Shade 2.0 at light state, light transmittance up to 30%. Provides welders with superior clarity and visual acuity.
Extended Shade Range:
2.0 (grinding) / 4-8 (cutting) / 8-12 (welding). Allows for wide range of applications.

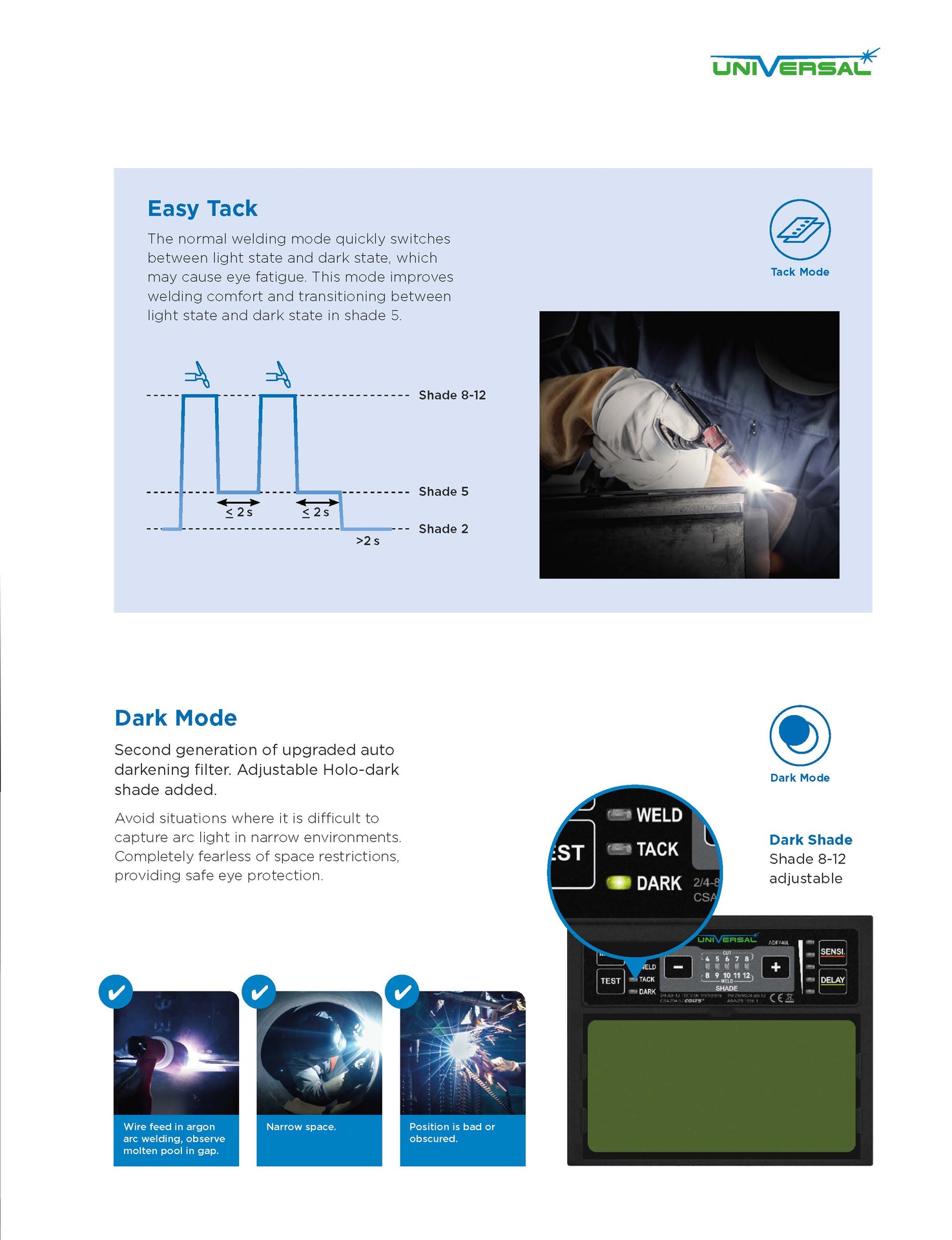

Tack Mode:
Aims for a smoother transition between light and dark states when tack welding.
Dark Mode:
Designed for tackling complex environments where surrounding factors limit the arc sensors rom functioning properly.

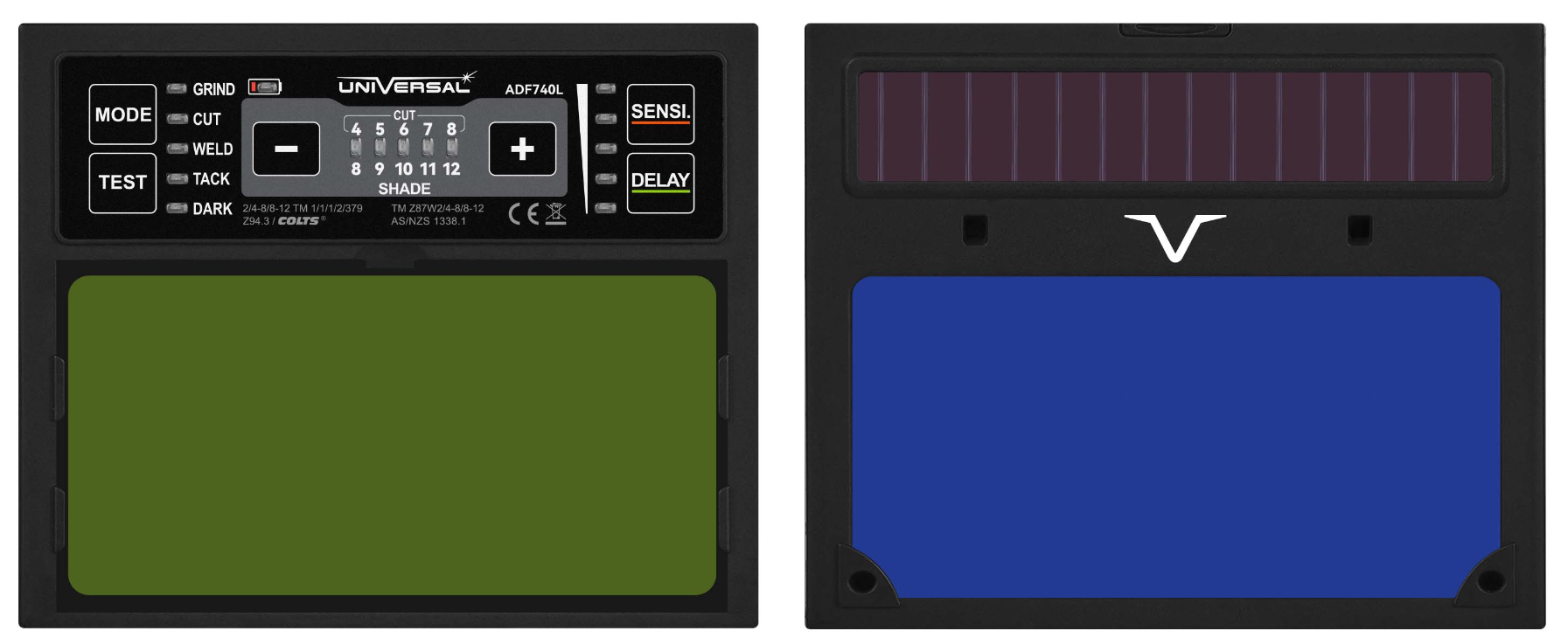

Viewing Area
96.00 x 46.50mm
Lens Shade
DIN 4-8/9-13 Variable
Grind Mode
Yes (internal)
On/Off
Automatic sleep mode
Power Supply
Solar cell. Replaceable battery (1xCR2450 lithium)
Switching Time
1/25,000 s
Sensitivity Control
Yes - Internal LCD
Delay Time (dark to light)
0.05 - 1.0s LED and Button Control
Low Amp TIG Rated
>=2amps/DC; >=2amps/AC
Application Range
Stick Welding (DC&AC); TIG( DC,DC Pulse);TIG AC(Pulse),Excellent low amperage TIG response; MIG/MAG ;MIG/MAG Pulse;Plasma Cutting/ Welding; Grinding; Not for Laser Welding or Oxyacetylene Welding/Cutting
CE, ANSI, CSA, AS/NZS approved
