G Series Welding/Goggle incorporating modern ADF technology. The G Seriesis a lightweight product designed to reduce neck strain. In addition, the G Series is designed to fit under most hard hats, including Universal's H series.
Download Data Sheet
UNIVERSAL_G-Series Goggle Fact Sheet
Universal_G Series Goggle User Instructions
UNIVERSAL G Series Goggle_Spares
UNIVERSAL_G-Series Goggle Fact Sheet
Universal_G Series Goggle User Instructions
UNIVERSAL G Series Goggle_Spares
Optical Class
1/1/1/1
LCD Viewing Area
47.0 sq. cm. (7.29 sq. in.)
Goggle Size
187 x 75 x 82 mm (7.4 x 2.9 x 3.2 in.) Standards
Light State
DIN 3.5
Dark State
Variable Shade 5 ~ 8 / 9 ~ 13
Shade Control
Digital Display Control, Variable Shade
Power On/Off
Fully Automatic
Sensitivity Control
Variable 0 to 9
UV/IR Protection
Up to Shade DIN 16 at all times
Power Supply
Solar cell, 1 x CR2450 lithium battery
Switching Time
1 /25,000 s. from Light to Dark
Dark to Light
Variable 0 to 9 (0 .05 to 1.0 sec.)
Low Amperage TIG Rated
2: 2 amps (DC); 2: 2 amps
Operating Temp
- 10·c ~ +55·c (14'F ~ 131 "F)
Storing Temp
20·c ~ +70·c ( 4'F ~ 15 8'F)
DIN EN379, EN175, EN166

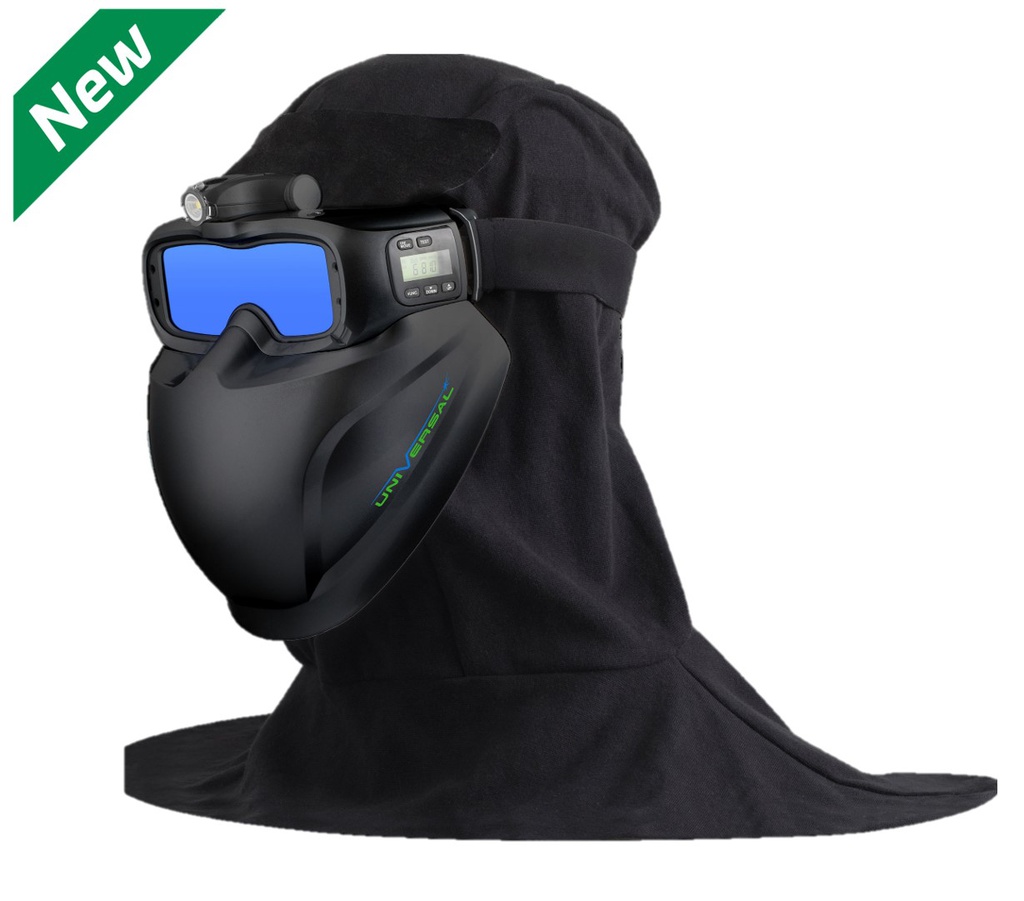

G SERIES GOGGLE WITH CHINGUARD/HOOD BLACK
`
G Series Welding/Goggle incorporating modern ADF technology. The G Seriesis a lightweight product designed to reduce neck strain. In addition, the G Series is designed to fit under most hard hats, including Universal's H series.
Download Data Sheet
UNIVERSAL_G-Series Goggle Fact Sheet
Universal_G Series Goggle User Instructions
UNIVERSAL G Series Goggle_Spares
UNIVERSAL_G-Series Goggle Fact Sheet
Universal_G Series Goggle User Instructions
UNIVERSAL G Series Goggle_Spares
Optical Class
1/1/1/1
LCD Viewing Area
47.0 sq. cm. (7.29 sq. in.)
Goggle Size
187 x 75 x 82 mm (7.4 x 2.9 x 3.2 in.) Standards
Light State
DIN 3.5
Dark State
Variable Shade 5 ~ 8 / 9 ~ 13
Shade Control
Digital Display Control, Variable Shade
Power On/Off
Fully Automatic
Sensitivity Control
Variable 0 to 9
UV/IR Protection
Up to Shade DIN 16 at all times
Power Supply
Solar cell, 1 x CR2450 lithium battery
Switching Time
1 /25,000 s. from Light to Dark
Dark to Light
Variable 0 to 9 (0 .05 to 1.0 sec.)
Low Amperage TIG Rated
2: 2 amps (DC); 2: 2 amps
Operating Temp
- 10·c ~ +55·c (14'F ~ 131 "F)
Storing Temp
20·c ~ +70·c ( 4'F ~ 15 8'F)
DIN EN379, EN175, EN166
